Callaway Chrome Tour Triple Diamond Ball Lab Review: The Best Compression Numbers We’ve Seen All Year

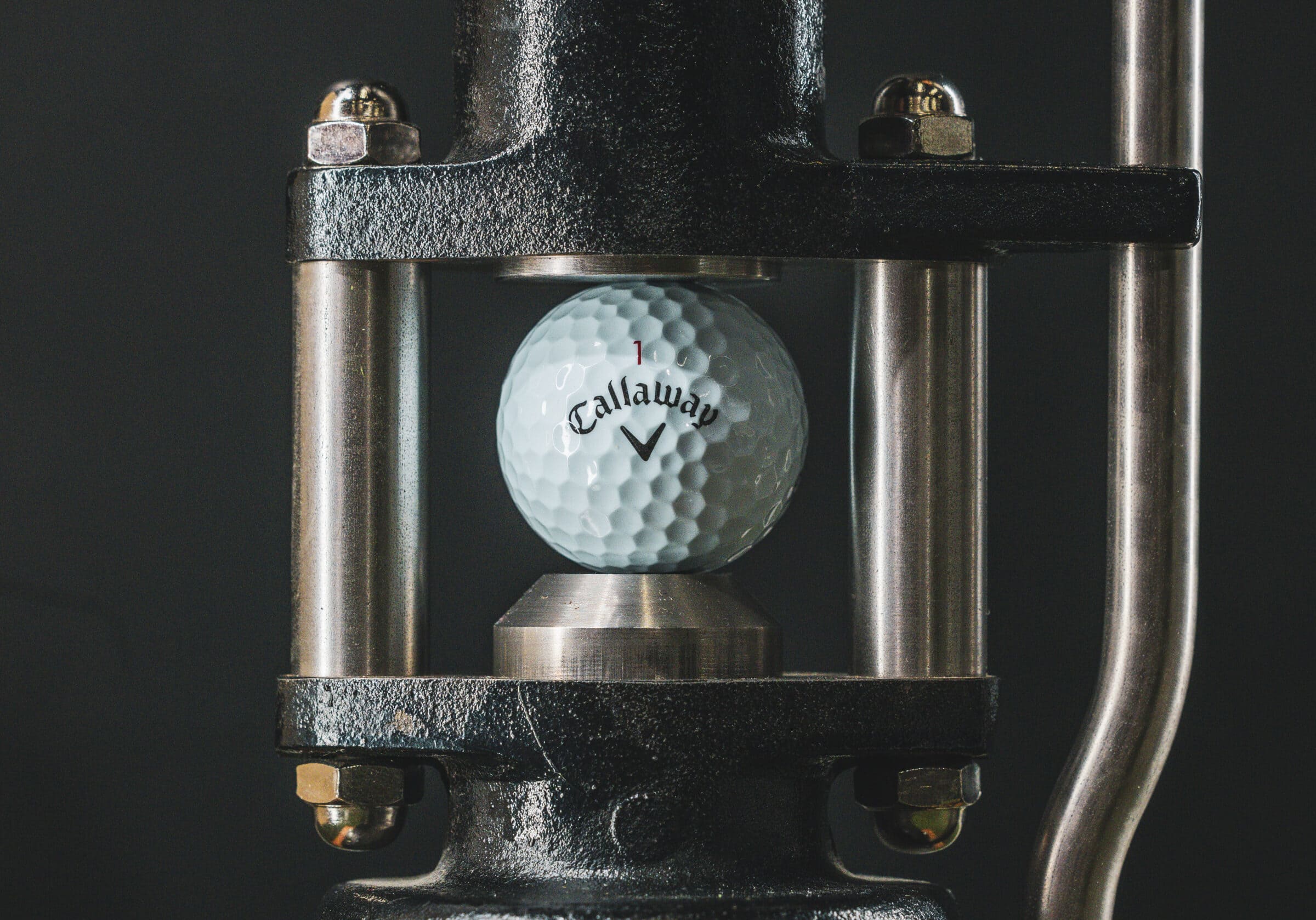

Compression is a measure of how much force is required to deform a golf ball. The higher the number, the firmer the ball. Consistency matters because a ball that compresses differently from shot to shot produces different results from shot to shot. Ball Lab measures every ball individually and tracks both the average and the spread across the sample.

The 2026 Callaway Chrome Tour Triple Diamond averaged 101, in the extra-firm range of our database alongside the Titleist Pro V1x. Compression consistency graded at A- with a delta of just 5.2 points and a spread running from 98.5 to 103.7. The compression is very consistent. The ball-to-ball spread here is one of the tightest we’ve measured.

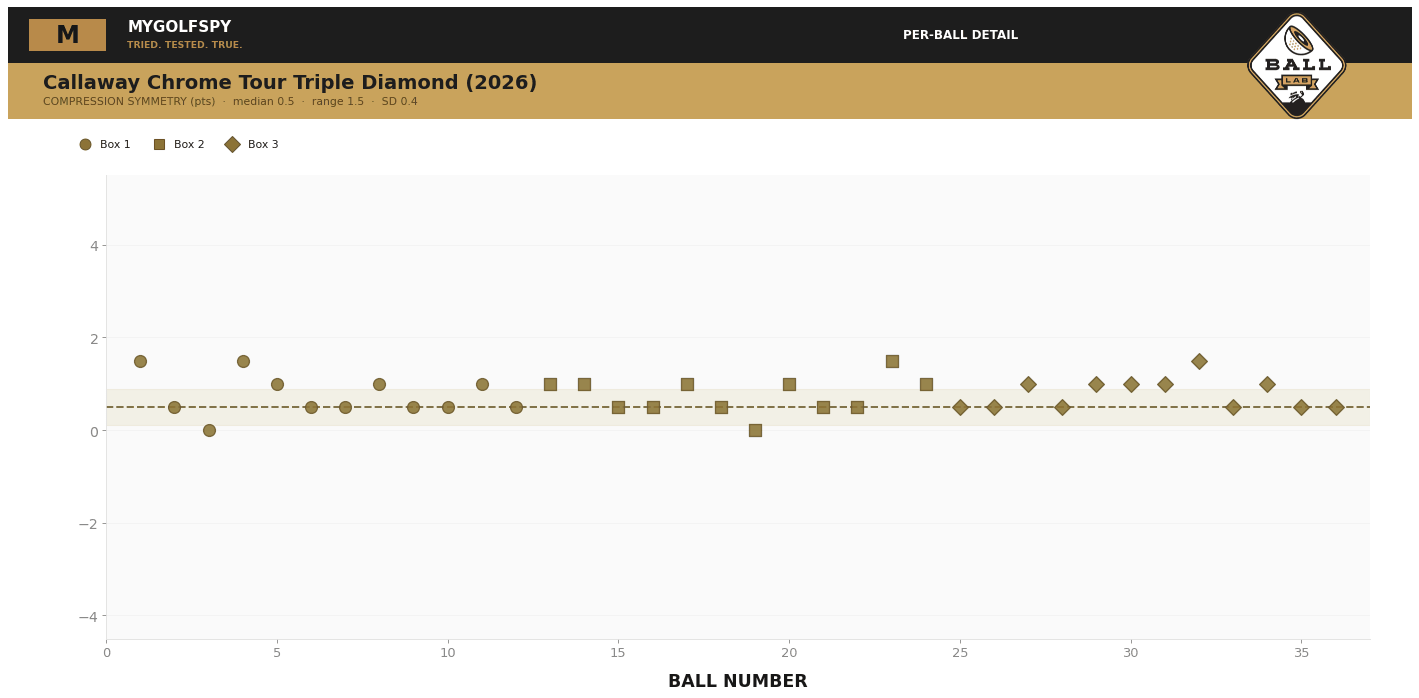

Ball Lab also measures compression symmetry which tracks how evenly compression is distributed across three points on each individual ball. Is each ball consistent within itself? The Chrome Tour Triple Diamond averaged just 0.5 points of deviation against a field average of 1.9, grading at A. That number is exceptional.

For context, the best results we typically see from elite “tour” balls come in around 1.0. The Triple Diamond cuts that in half. Every ball in the sample is compressing almost identically across all three measurement points.

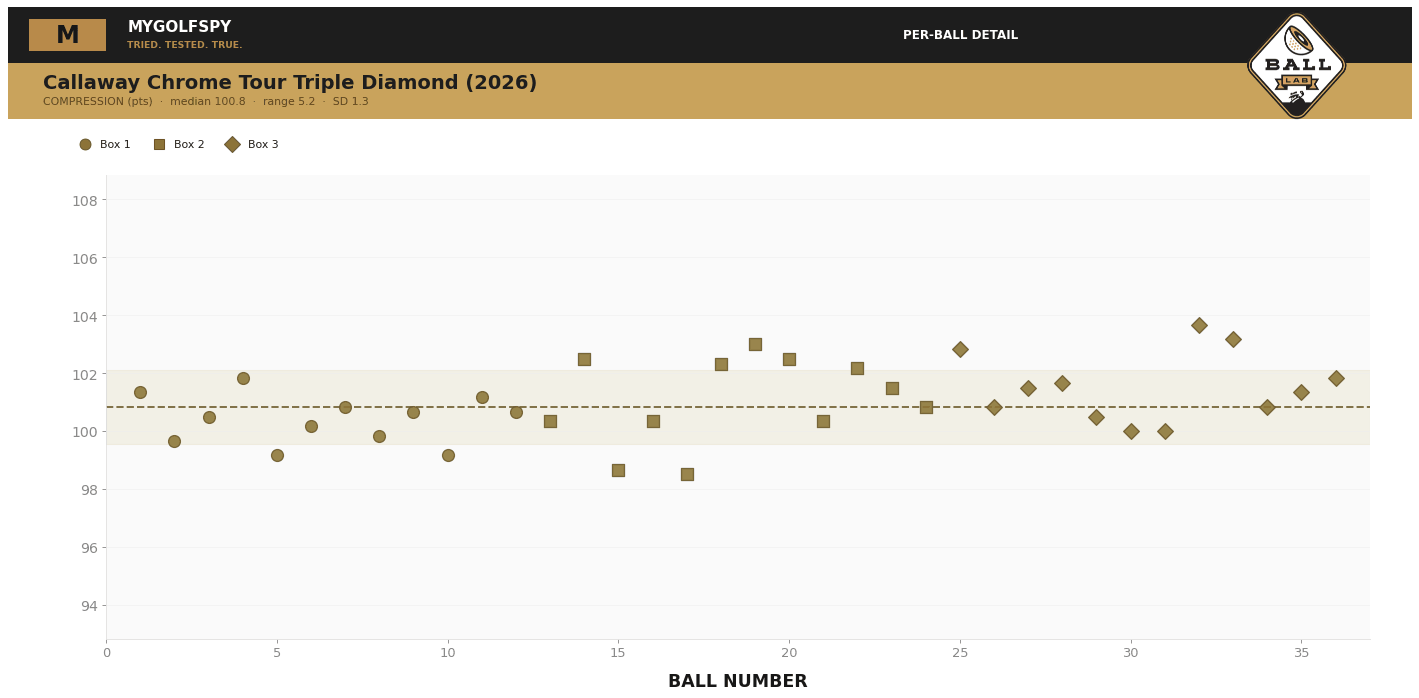

The charts below detail the compression measurements in our sample.

Weight consistency is another metric Ball Lab tracks. Even small differences across a dozen balls can translate to inconsistent ball flight. Ball Lab weighs every ball to four decimal places.

The 2026 Callaway Chrome Tour Triple Diamond averaged 1.6104 ounces across 36 balls, in the average range of the database. Every ball cleared the USGA maximum of 1.6205 ounces with a range running from 1.6047 to 1.6144 and a standard deviation of 0.0025. One pattern worth noting: Box 3 ran lighter and less consistent than Boxes 1 and 2 which accounts for a meaningful portion of the overall spread. Taken in isolation, Boxes 1 and 2 tell a tighter story.

Weight consistency grades out at B.

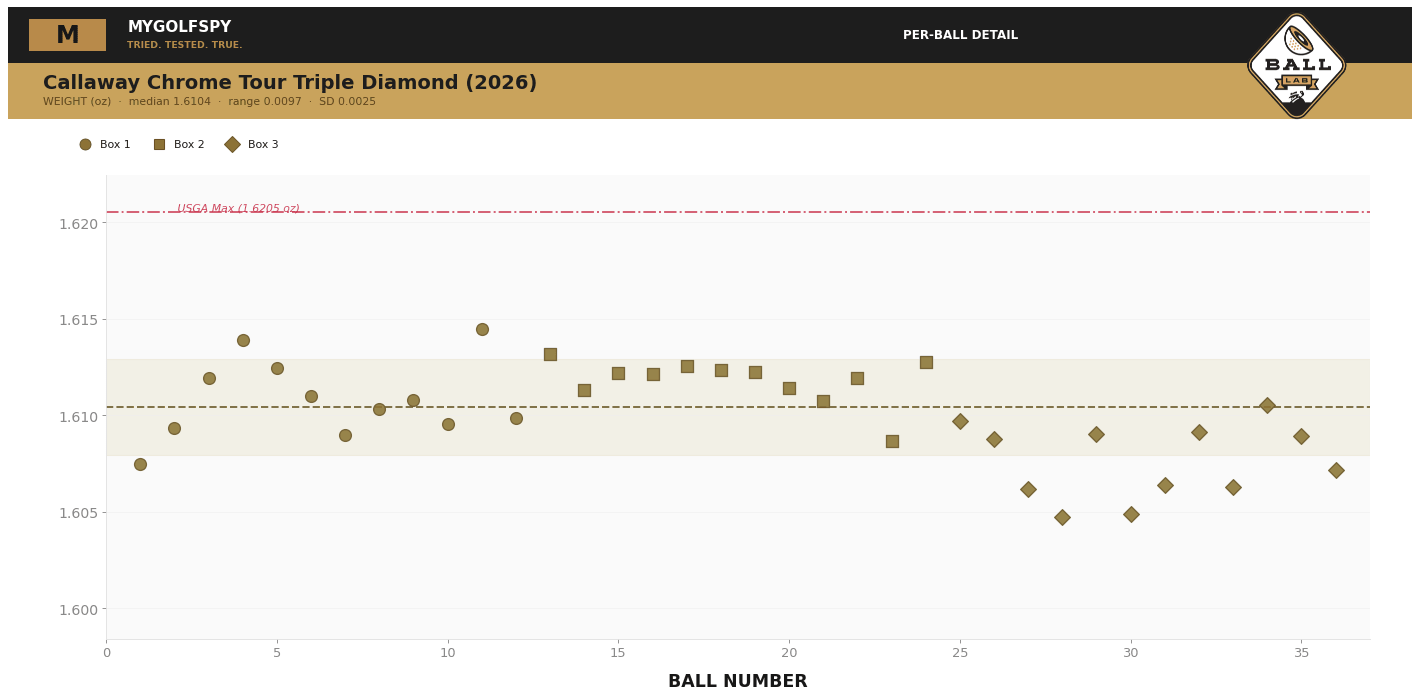

The charts below detail the weight measurements in our sample.

A ball that isn’t uniform in shape can move offline on the putting green or produce inconsistent flight in the air. Ball Lab measures each ball across multiple axes to get a true picture of its shape.

The 2026 Callaway Chrome Tour Triple Diamond averaged 1.6824 inches, above the USGA minimum of 1.680, with a roundness deviation of just 0.0003 inches. Every ball cleared the minimum. The diameter data is notably clean: 34 of 36 balls fell within gauge noise on the pole-versus-seam measurement and there was no consistent shape bias identified across the sample. Box 2 was the least consistent of the three at an SD of 0.00031 while Box 3 was the tightest at 0.00017.

Diameter consistency graded out at B.

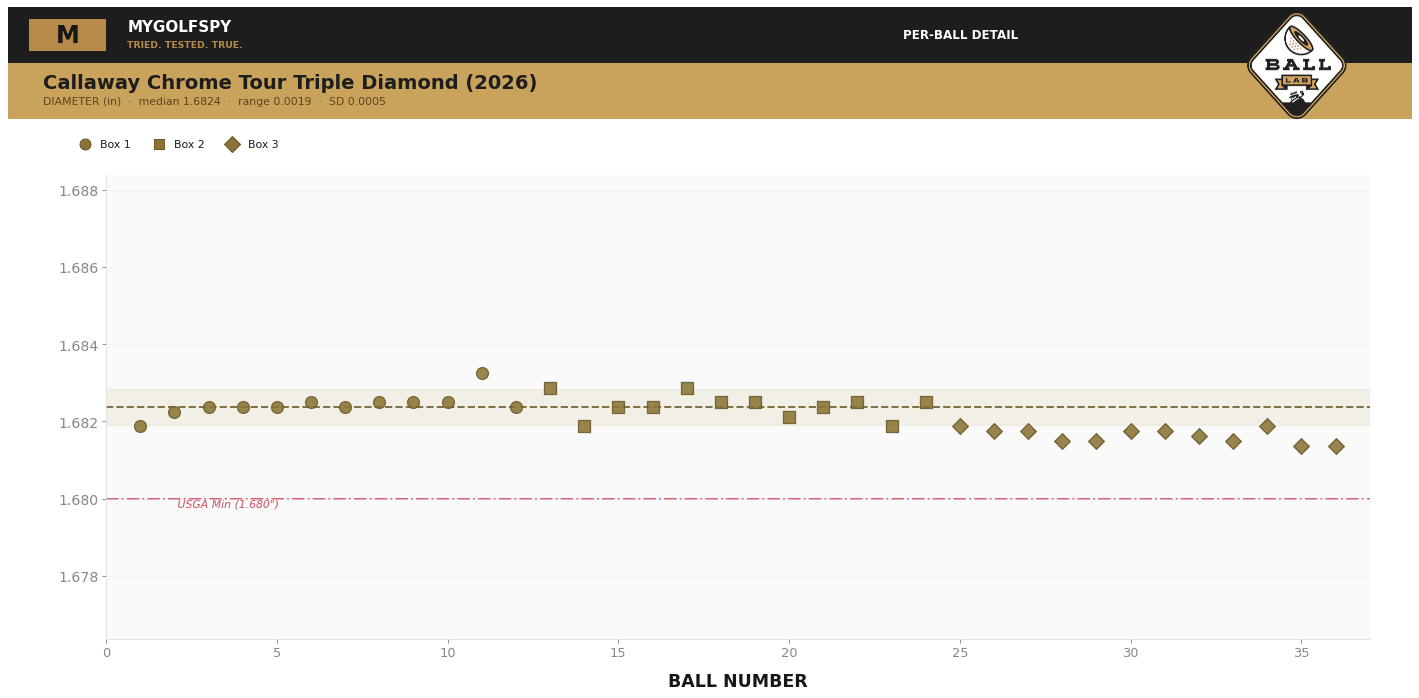

The charts below detail the diameter measurements in our sample.

In the 2026 MyGolfSpy Golf Ball Test, the Callaway Chrome Tour Triple Diamond showed up as one of the stronger performers in the field across multiple conditions. Off the driver at high swing speed, it finished inside the top statistical group for both ball speed and total distance. It was one of the fastest balls in the test off the 7-iron at both high and mid swing speed, finishing level with the Staff Model X and Chrome Tour X at the top of the iron speed chart.

At mid swing speed, it was among the longest balls for driver carry and it finished as a top pick in the low-spin category across multiple speed groups. It also ranked inside the top 10 for iron distance at mid speed while spinning above the field average, a combination that’s hard to find.

It’s worth noting that the Triple Diamond produced some of the most significant outlier results we saw in the 2026 ball test, performance anomalies that stood out even in a large field. Ball Lab doesn’t measure paint or cover finish, and the manufacturing data here is clean and encouraging, exactly what you’d expect from a brand that has leaned heavily into a quality story. The Ball Lab results are what they are, and they’re among the best we’ve seen.
