The 2026 TaylorMade TP5X earned a Quality Score of 93 with an A overall grade: Recommended. It posted a perfect 100 on Good Ball Rate with zero bad balls out of 36 and no category-level defects across cores, layers or covers. Compression consistency ranked in the top 10 of all golf balls tested. The one nuance worth flagging is that our three boxes came from two different manufacturing sources: Taiwan for Boxes 1 and 2, South Korea for Box 3. We’ll get into what that looked like in the data below.
At $57.99 a dozen, the 2026 TaylorMade TP5X sits at the premium end of the golf ball market. It’s a five-piece urethane construction, the most complex build in the game, designed to deliver “tour-level” spin separation across the bag. For the golfer who wants a ball that performs at the highest level and wants to know the manufacturing quality backs up the price tag, the TP5X delivers on both counts.
Here’s what the 2026 TaylorMade TP5X looks like under the microscope.
TaylorMade TP5x
Pros
Pros - Zero bad balls out of 36, with compression consistency ranking in the top 10
- Compression symmetry of 1.0 points is well below the field average of 2.0, meaning each individual ball is highly uniform from one measurement point to the next.
Cons
Cons - At a median of 1.6798", some balls in the sample measured under the USGA minimum diameter of 1.680"
- Weight and diameter consistency both graded Average, the two categories that keep this from being a clean sweep across the board.
Our Verdict
Our Verdict The 2026 TaylorMade TP5X earns a Quality Score of 93 and an A grade: Recommended. Good Ball Rate came in at a perfect 100 percent with zero bad balls out of 36 and no defects identified across cores, layers or covers. Compression consistency graded A- and ranks in the top 10 of 123 balls tested with a delta of just 4.7 points across the sample. Compression symmetry also graded A- at 1.0 points median which is well below the field average of 2.0. Diameter and weight consistency both graded in the Average range, the only categories that kept this from being a near-perfect result. One note on context: Boxes 1 and 2 were produced in Taiwan while Box 3 came from South Korea.
All the data you need to choose the best golf ball for your game:
2026 Ball Test Results and 2026 Completed Ball Labs
Google is changing how content is shown. Add MyGolfSpy as your preferred source to ensure you don’t miss the latest gear news, instructional tips and buying guides.
Product details
- Price: $57.99/dozen
- Construction: 5-piece urethane
- Compression: 98 (X-Firm)
- Factory: TaylorMade, Taiwan/South Korea
- Diameter: 1.6798 in.
- Weight: 1.6044 oz.
- Bad Balls: 0 of 36
Test results
The 2026 TaylorMade TP5X scored 93 and earned an A grade: Recommended. Across nearly every category, this is one of the stronger results in the database.
Good Ball Rate came in at 100 percent. Zero of 36 balls were flagged and no defects were identified across cores, layers or covers. That’s a perfect score.
Compression consistency graded at A- with a delta of just 4.7 points and a spread running from 96.5 to 101.2.
The factory split is worth noting. Boxes 1 and 2 were produced at TaylorMade’s Taiwan facility while Box 3 came from South Korea. The compression chart shows Box 1 trending slightly higher than Boxes 2 and 3 although the spread across all three boxes remains tight by any measure.
Compression symmetry graded at A- with a median of 1.0 points against a field average of 2.0. Each ball compresses evenly across its three measurement points, among the best individual-ball uniformity results in the field.
Diameter consistency graded at B with a median of 1.6798 inches and an SD of 0.0005. A handful of balls measured just under the USGA minimum of 1.680 inches, the one blemish in an otherwise clean profile. Weight consistency graded at B- with a range running from 1.6002 to 1.6107 ounces and a standard deviation of 0.0026.
Use the MyGolfSpy Golf Ball Selector to compare 48 golf balls using data from our 2026 robot test. Filter by swing speed and see how each ball performs from driver to wedge to find the best fit for your game.
Compression

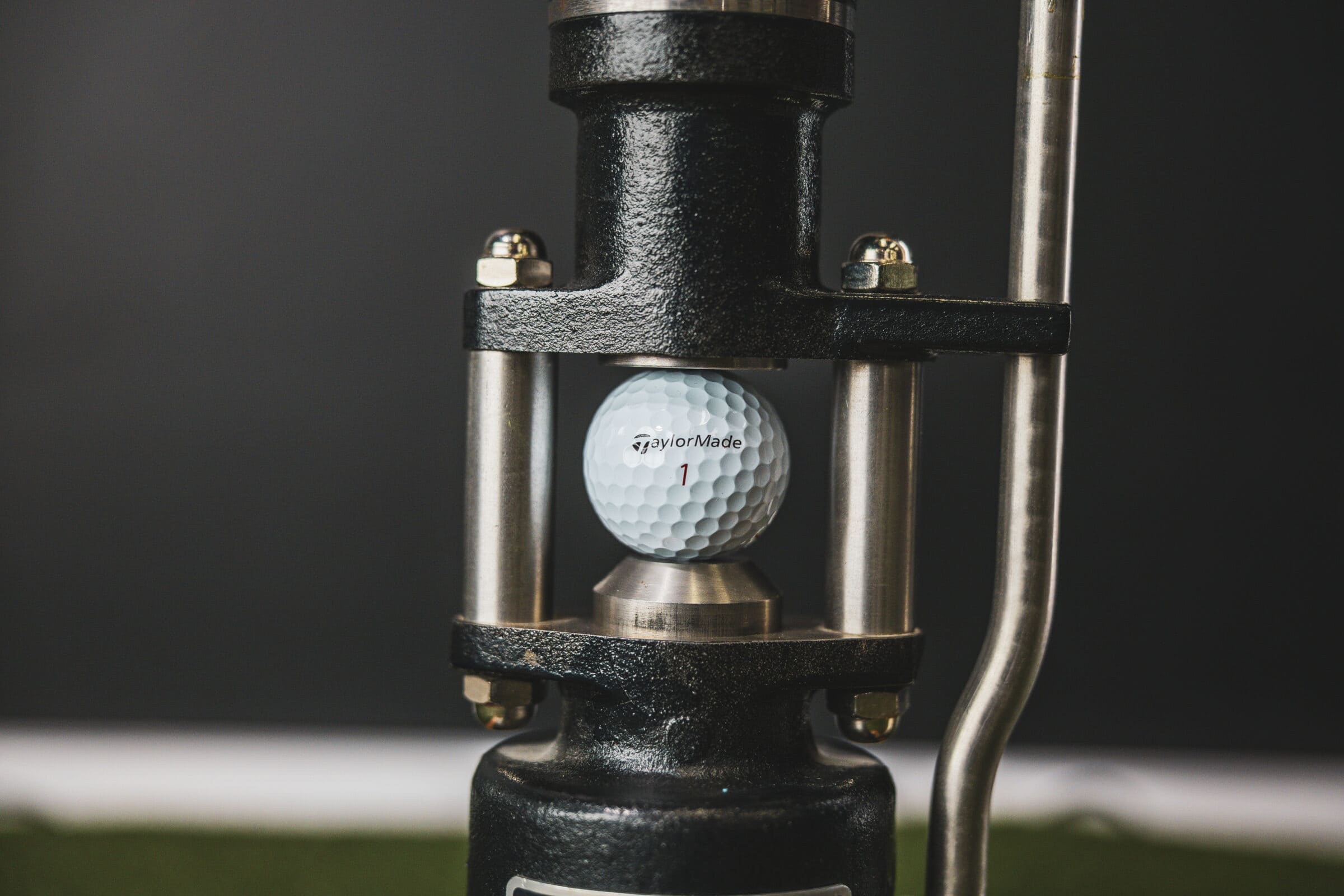

Compression is a measure of how much force is required to deform a golf ball. The higher the number, the firmer the ball. Consistency matters because a ball that compresses differently from shot to shot produces different results from shot to shot. Ball Lab measures every ball individually and tracks both the average and the spread across the sample.
The 2026 TaylorMade TP5X averaged 98, in the extra-firm range of our database. Compression consistency graded at A- with a delta of just 4.7 points and a spread running from 96.5 to 101.2. That ranks in the top 10 of all balls tested and sits well below the field average delta of 9.6 points.

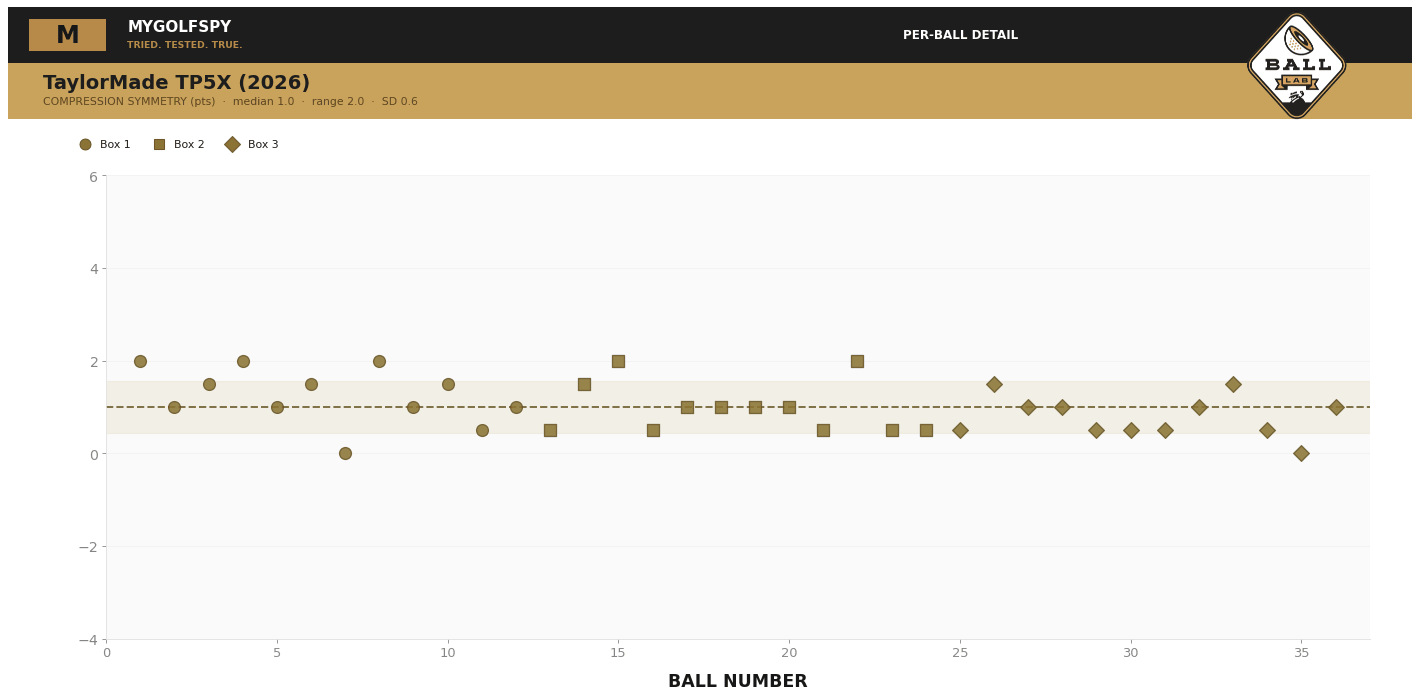

Compression symmetry graded at A- with a median of 1.0 points against a field average of 2.0. Each individual ball compresses evenly across its three measurement points, one of the better symmetry results in the field.
Box 1 from Taiwan trended slightly higher in compression than Boxes 2 and 3 from South Korea but the spread across all three boxes stays tight. This is a consistent ball across the board.

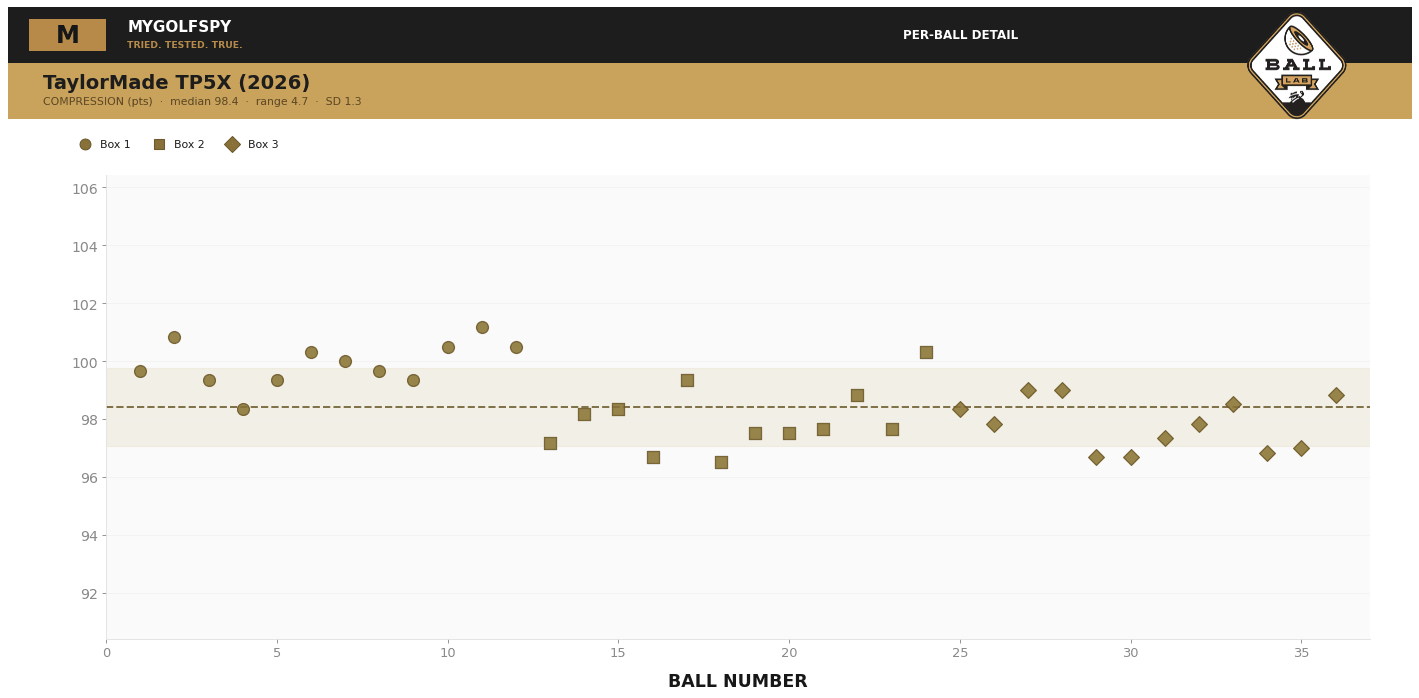

The charts below detail the compression measurements in our sample.
Weight
Weight consistency is another metric Ball Lab tracks. Even small differences across a dozen balls can translate to inconsistent ball flight. Ball Lab weighs every ball to four decimal places.
The 2026 TaylorMade TP5X averaged 1.6044 ounces across 36 balls, in the light range of the database. Every ball cleared the USGA maximum of 1.6205 ounces with a range running from 1.6002 to 1.6107 and a standard deviation of 0.0026. Weight consistency grades out at B-.

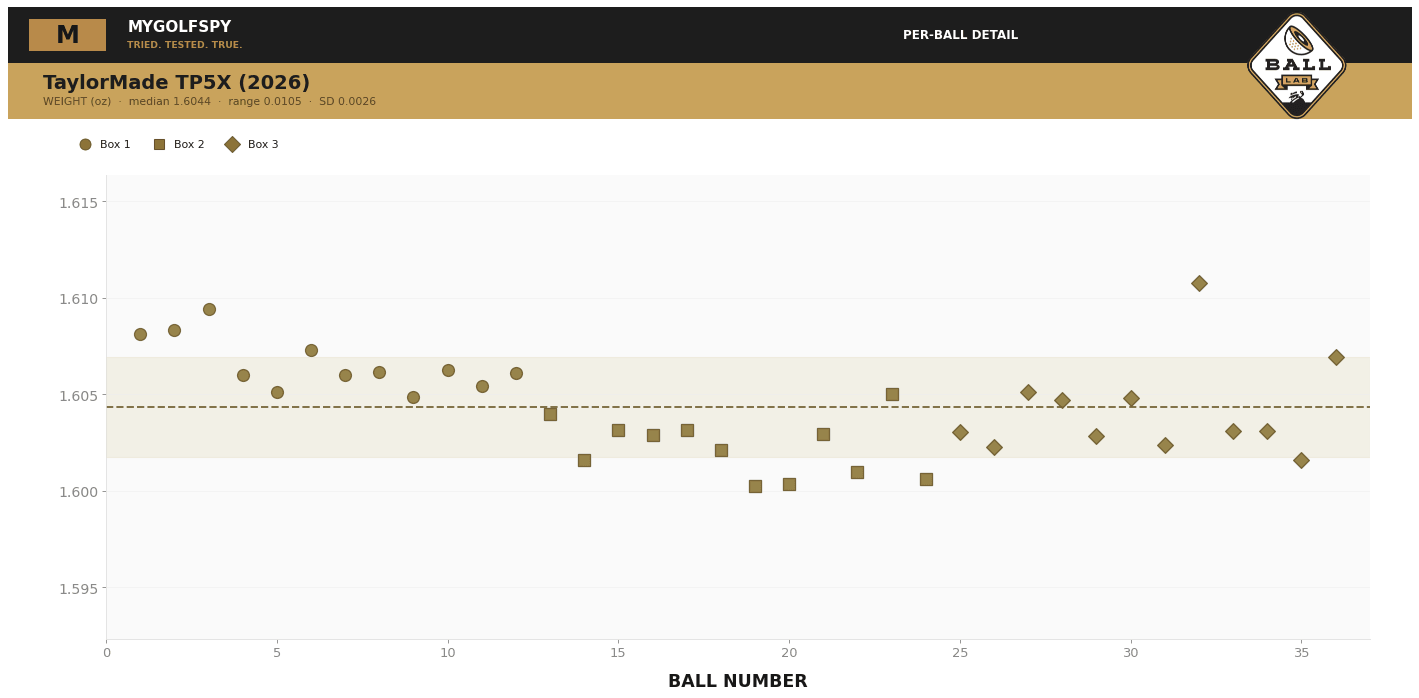

The charts below detail the weight measurements in our sample.
Diameter

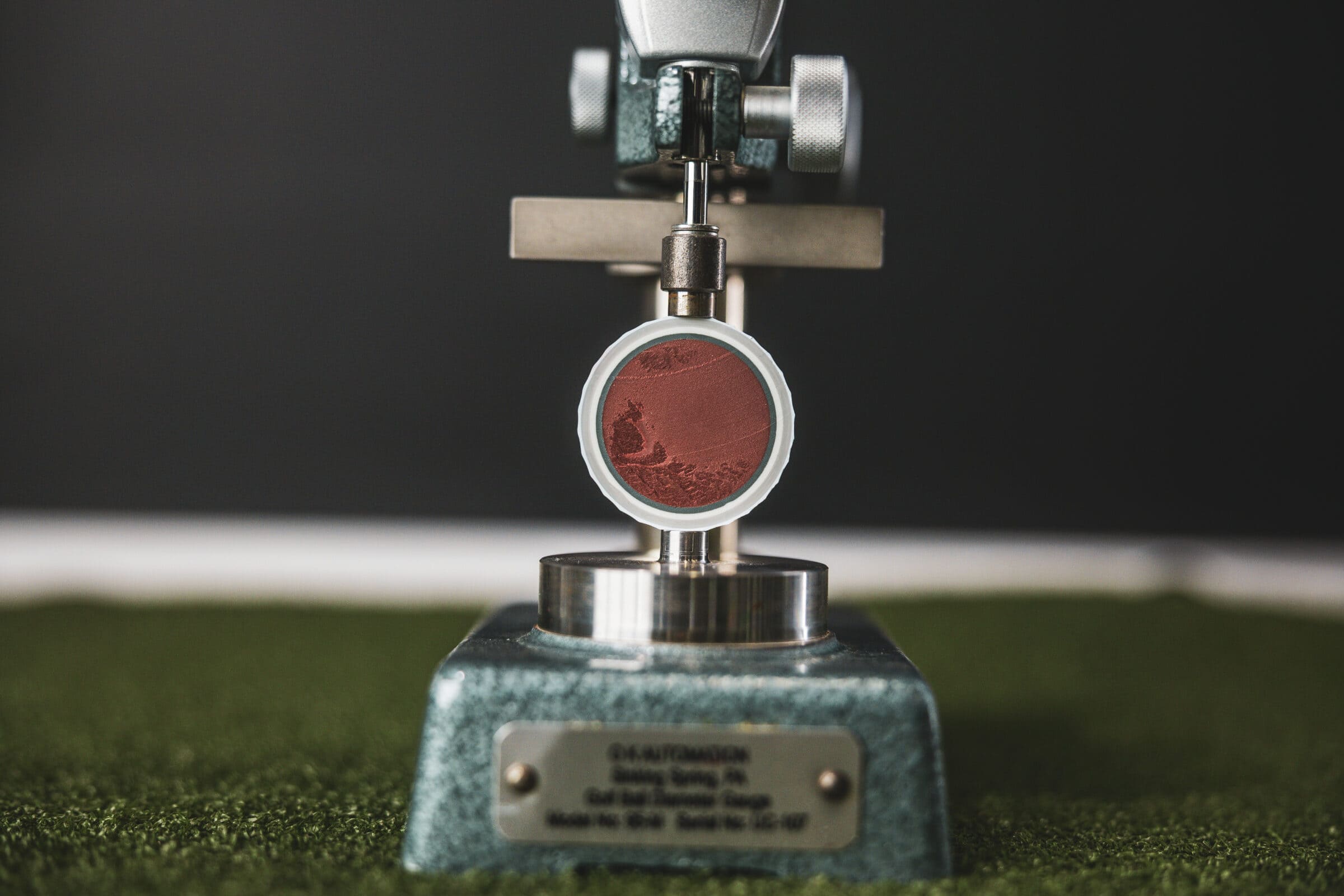

A ball that isn’t uniform in shape can move offline on the putting green or produce inconsistent flight in the air. Ball Lab measures each ball across multiple axes to get a true picture of its shape.
The 2026 TaylorMade TP5X averaged 1.6798 inches with a roundness deviation of 0.0006 inches. A handful of balls measured just under the USGA minimum of 1.680 inches. The pole-versus-seam data shows no consistent shape bias. Twenty-one of 36 balls fell within gauge noise and no lot-wide pattern was identified.
Diameter consistency graded out at B.

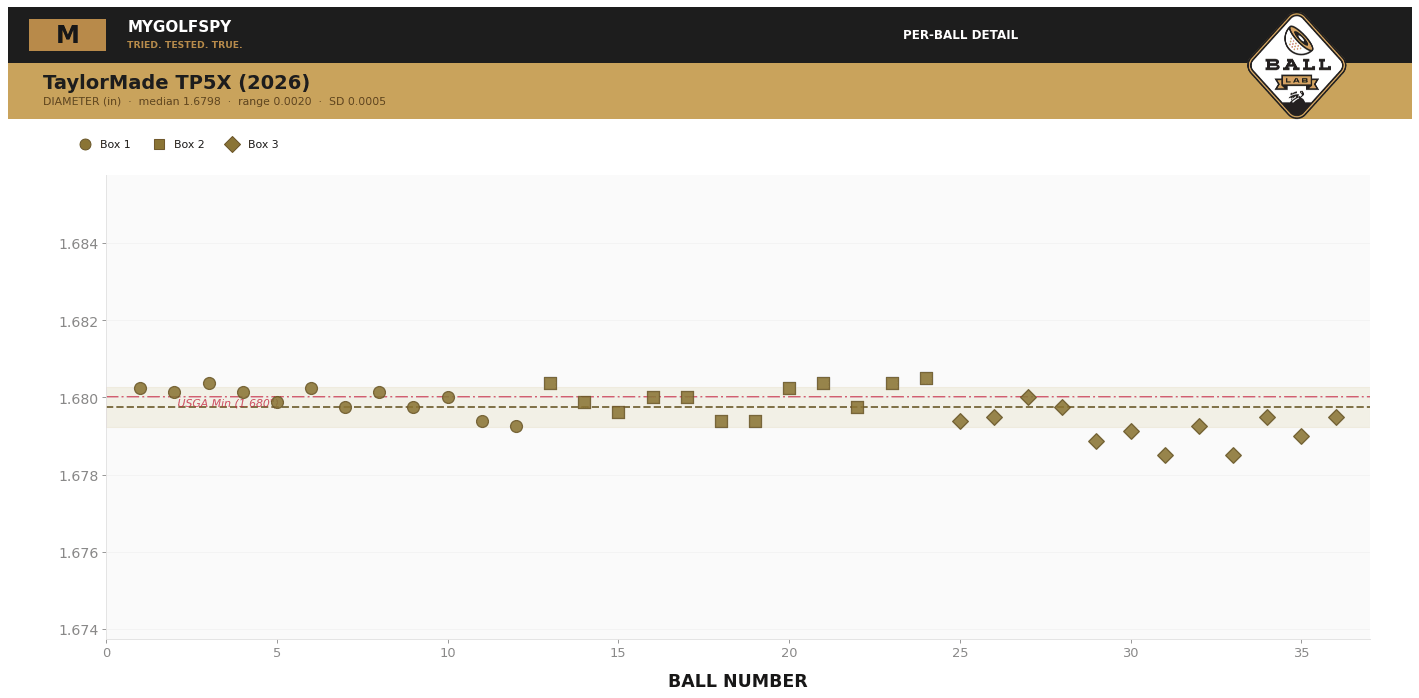

The charts below detail the diameter measurements in our sample.
Ball Test Results 2026
In the 2026 MyGolfSpy Golf Ball Test, the TaylorMade TP5X was named a mid-spin top pick at mid swing speed.
At low swing speed off the driver, it landed among the firmer options producing comparatively low spin, sitting in the bottom half of the spin chart. At 98 compression, the TP5X isn’t built to help slower swing speeds get the ball airborne.
Around the green, it finished just behind the top three in wedge spin at 35 yards, trailing the Callaway Chrome Tour X, Titleist Pro V1x and Srixon Z-Star Diamond. For a player who wants short-game performance from a mid-spin ball, it’s an option to consider.
Previous versions of the TP5X had some issues with flying wildly offline in our testing. TaylorMade claims to have addressed those problems with a new paint process and while TP5 was not the tightest dispersion in the test, new models appear to be significantly improved.

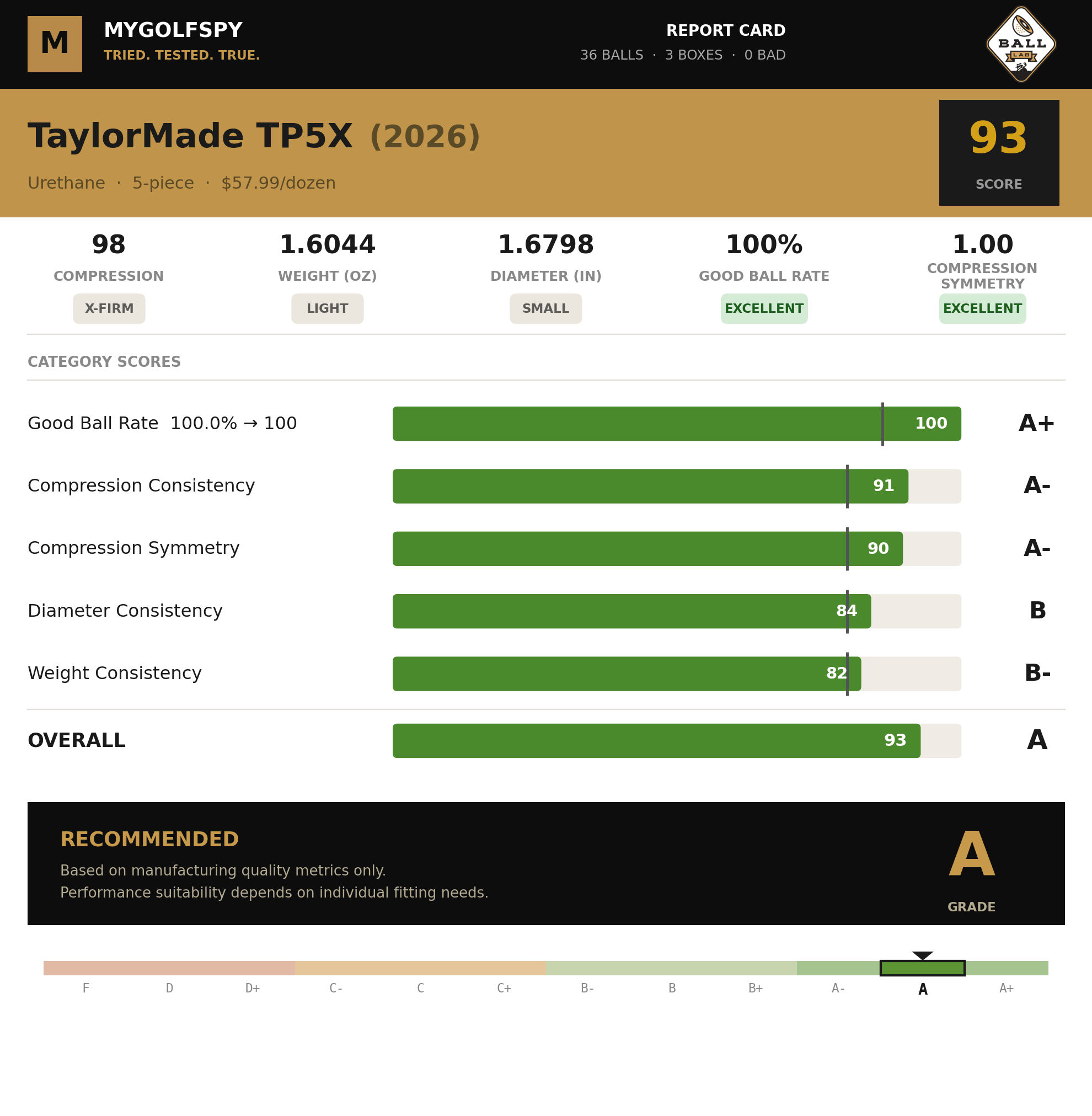

Ball Lab report card
Each Quality Score is a weighted average of five grades: Good Ball Rate, compression consistency, compression symmetry, diameter consistency, weight consistency. Our scoring system punishes defective balls more severely while giving greater weight to compression metrics than to weight and diameter.
